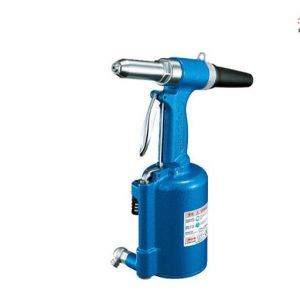

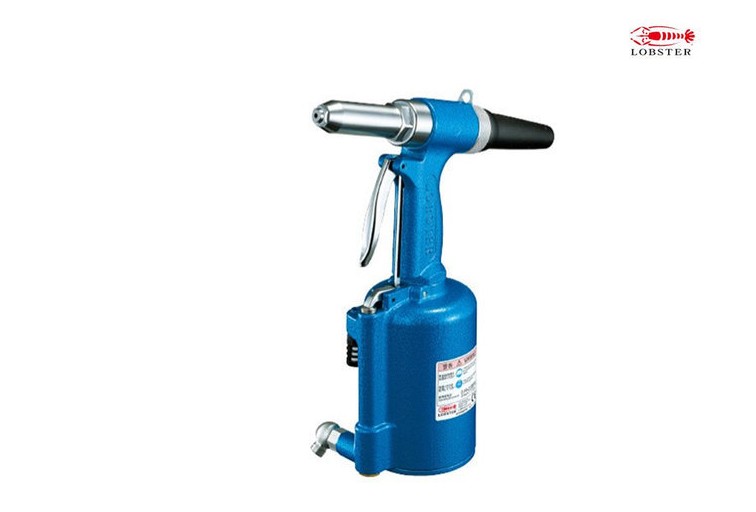

LOBSTER” riveter standard #AR011MX

Coming out newly-evolved X series in a globally-recognaized AR-011 Series.

・With its toughness of AR-011 Series
・Longer stroke from 14mm to 16mm (AR011MX)
・Applicable to Stainless Steel Rivet owing to Ultra Jaws and “Softset” technology (Shockless)
・Easy Jaw maintenance by One-touch detachable Jaws Case
・With built-in Silencer
・User-friendliness with Rotary joint and soft Safety cover
・Customizable: Optional parts available (Short trigger and Straight joint)

● Optional parts

Short trigger

Straight joint

IMPORTANT SAFETY INSTRUCTIONS

・Be sure to read the instruction Manual and important Usage Advisery carefully and make sure that you understand them thoroughly before using this tool.
・The air pressure should be kept within the range of 0.5~0.6MPa. If it’s greater, accident or injury may result.
・Always attach Safety Cover while using this tool.
・Be sure to remove the frame head when adding hydraulic oil through the cylinder.
